We are engaged in the production and modernization of hydraulic equipment for agricultural, municipal and road equipment.
We produce hydraulic cylinders, gear pumps, steering metering pumps, hydraulic valves of the P-80 type.
We offer a wide range of products for tasks of any complexity

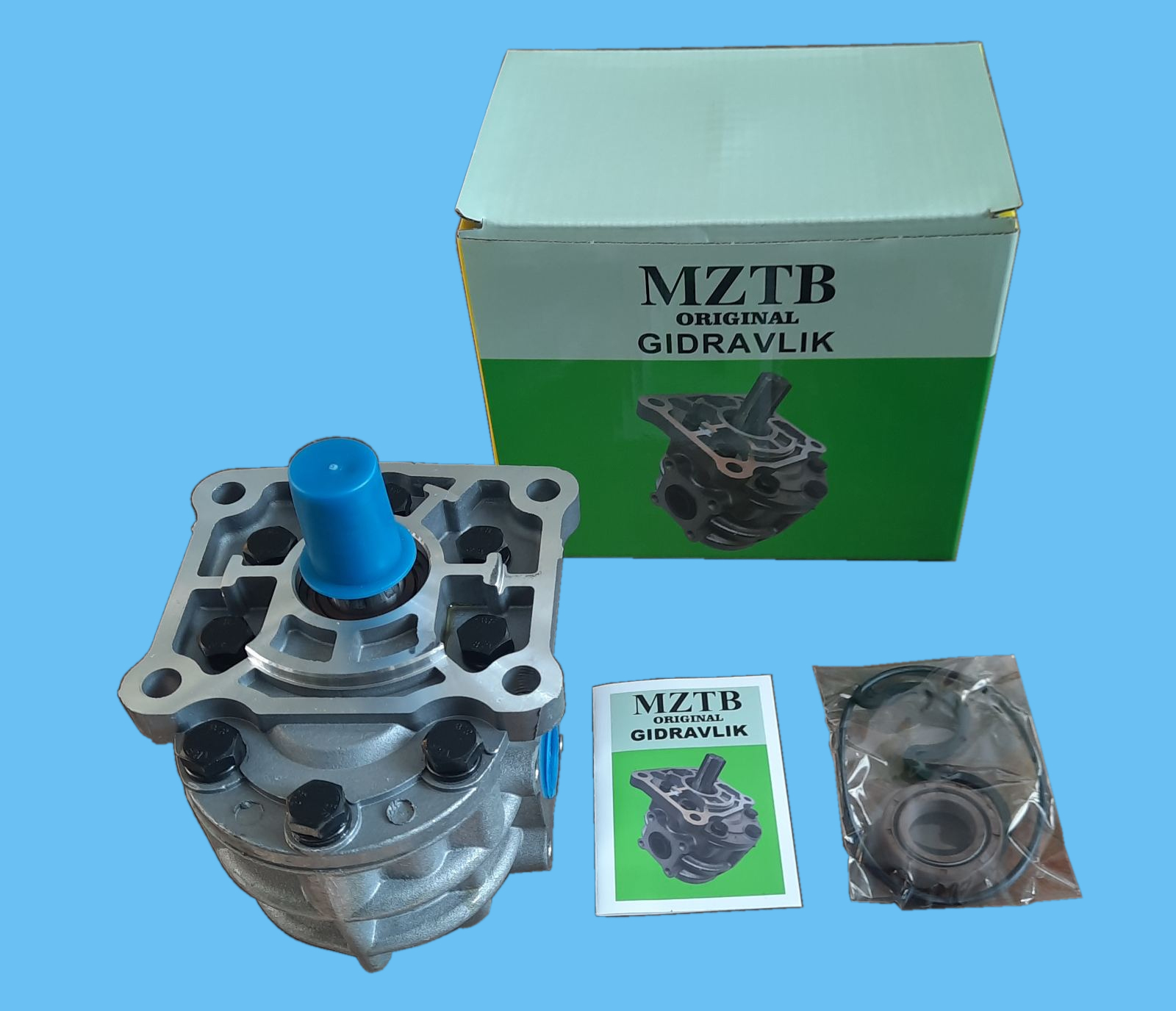

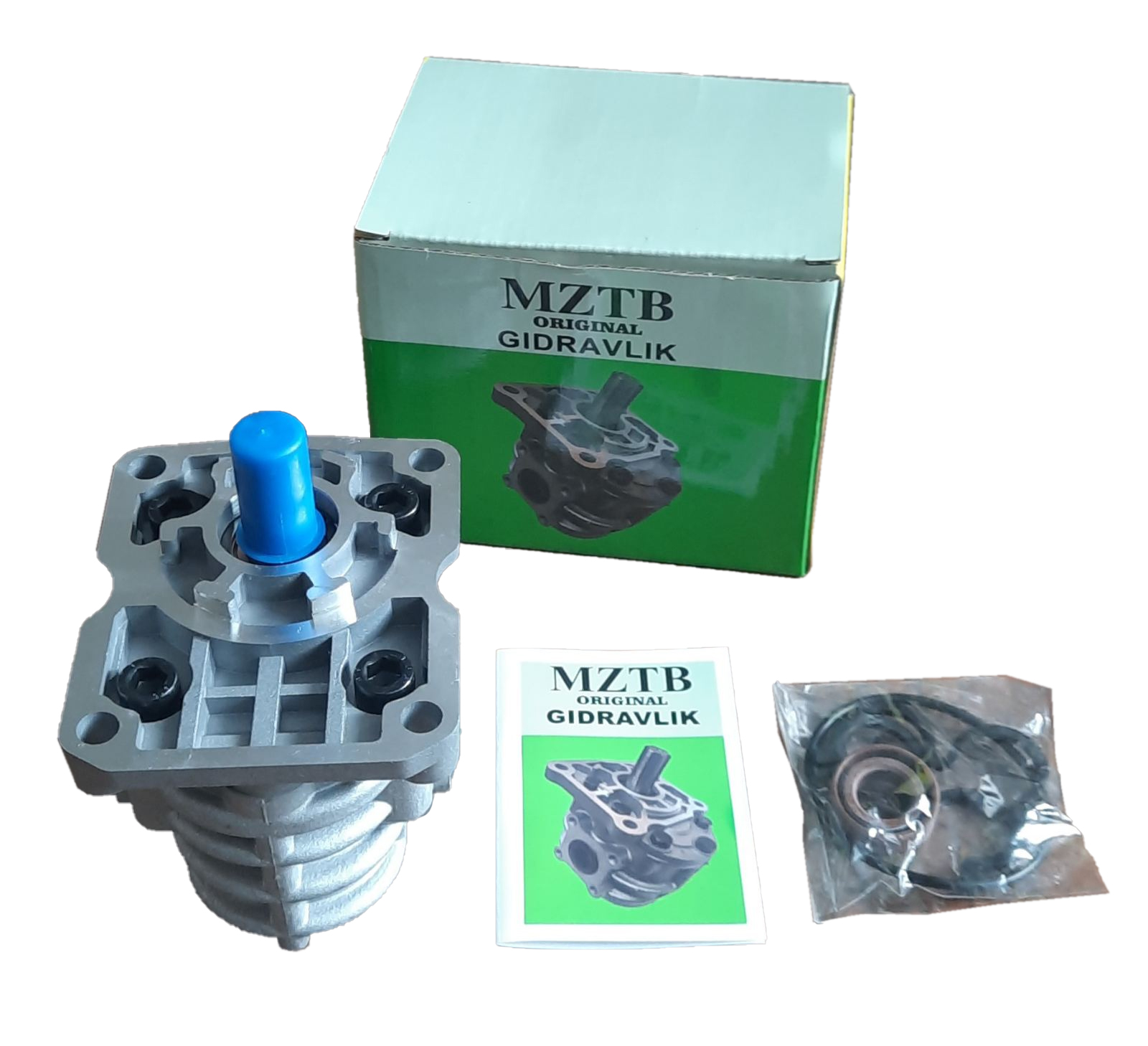

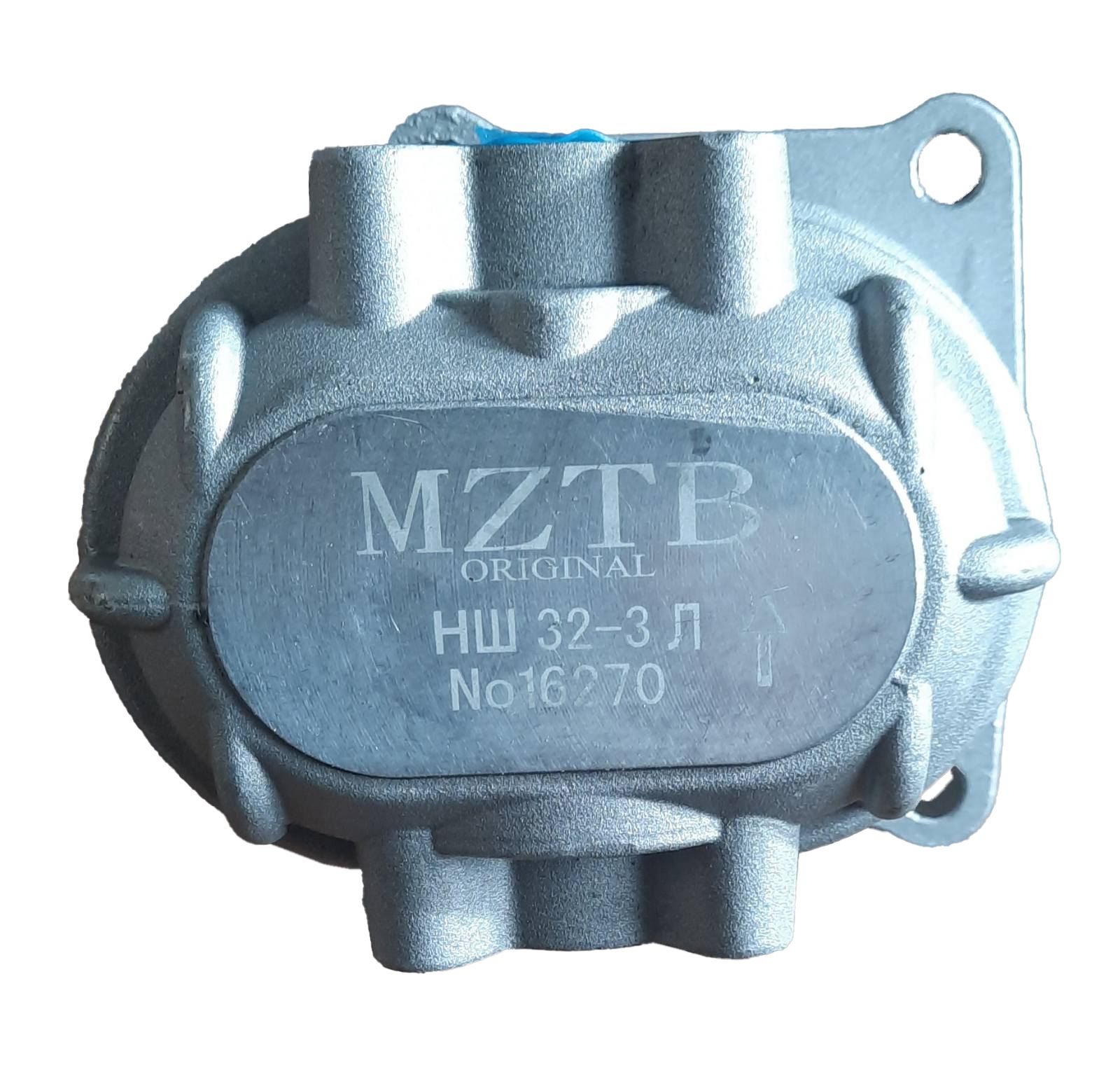

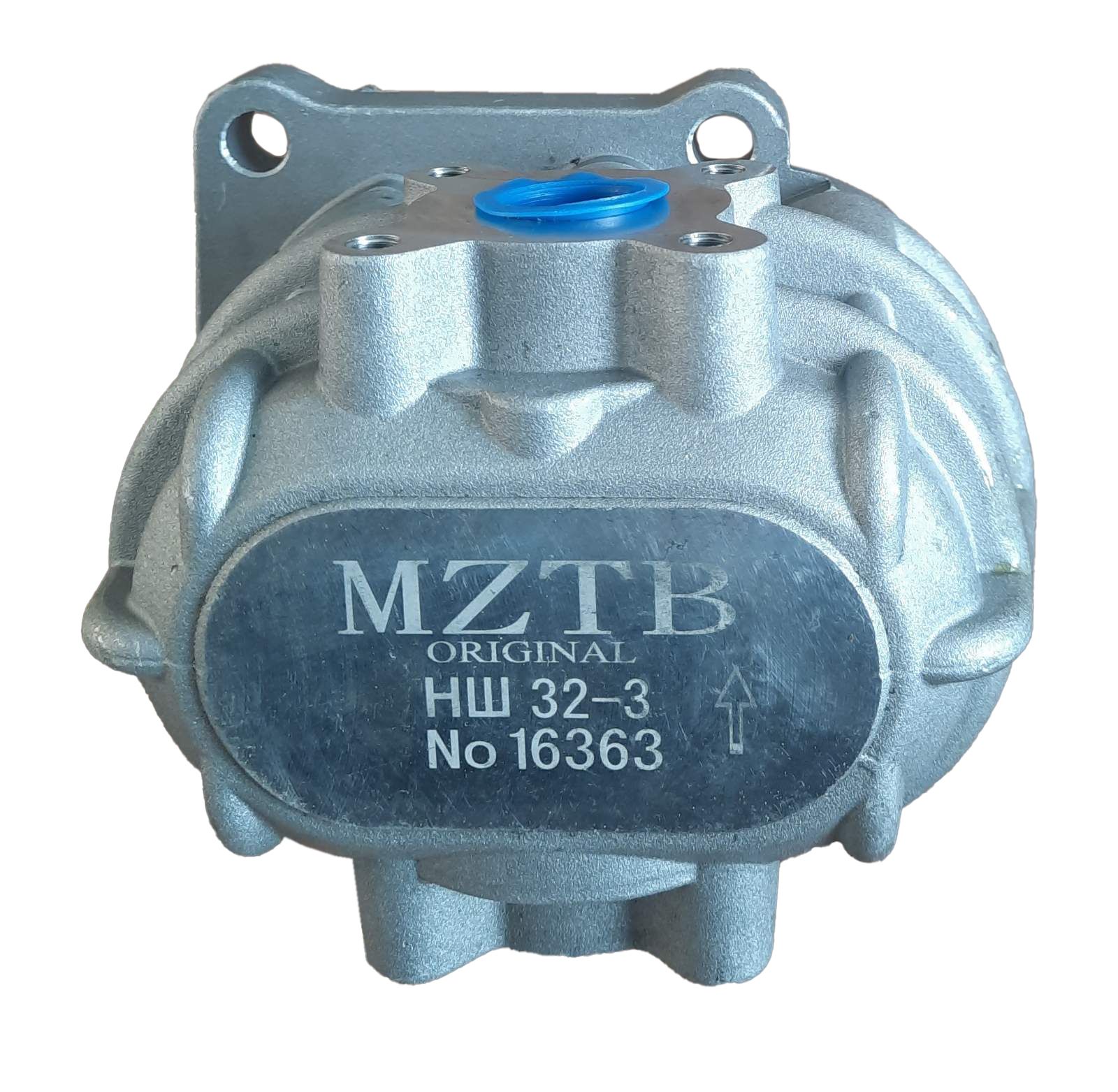

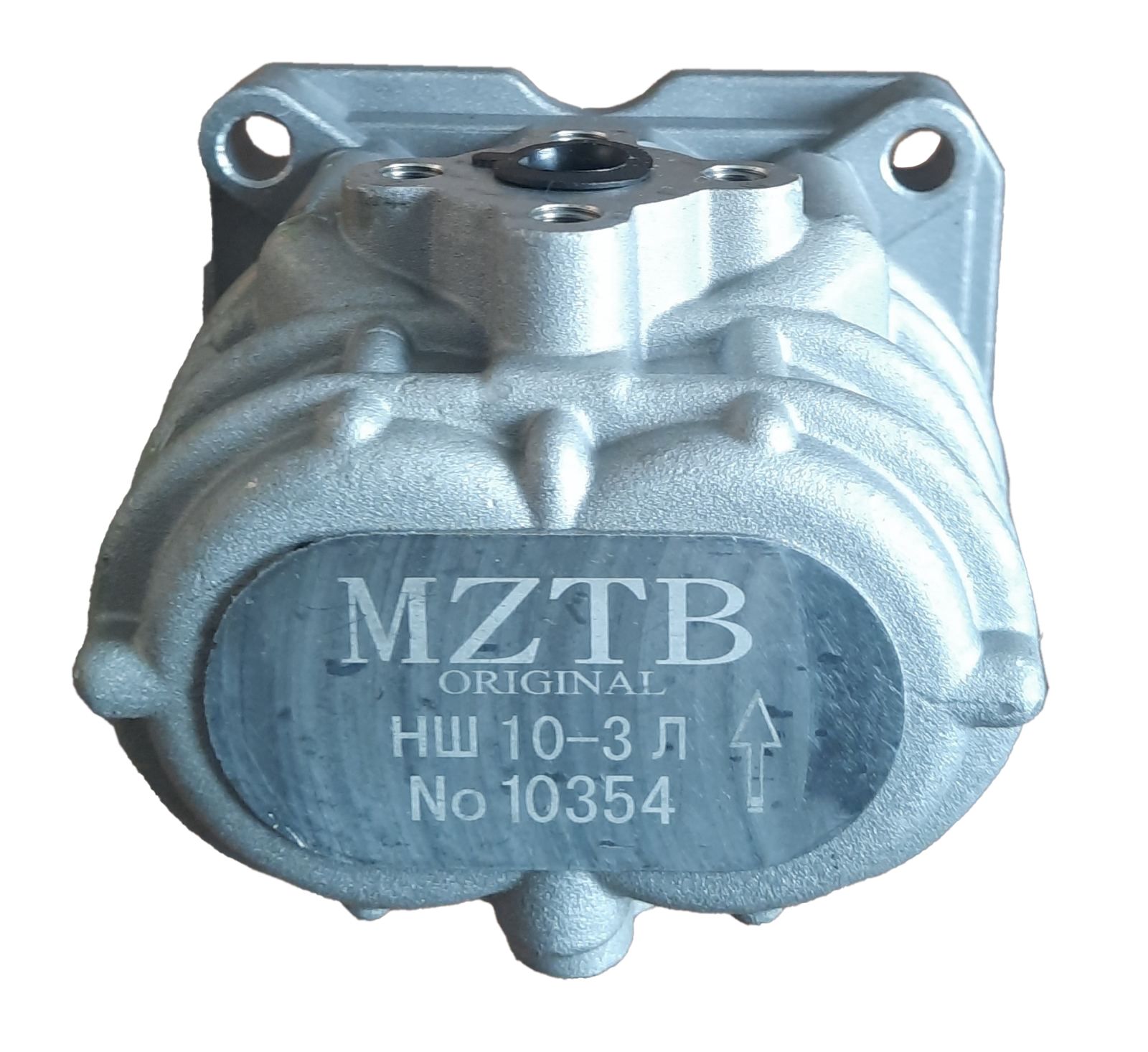

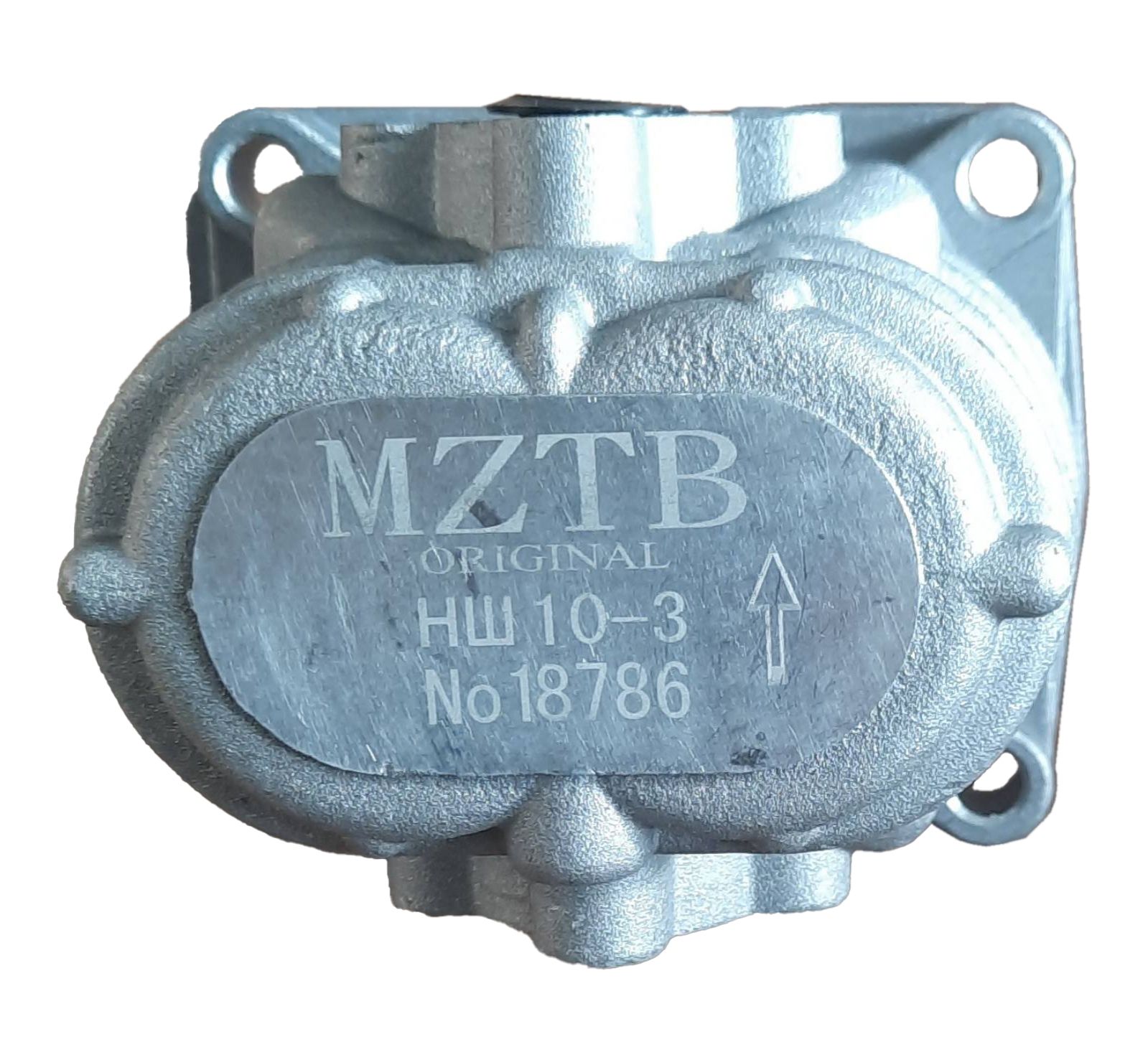

Gear pumps are manufactured in accordance with the ISO9001:2007 standard and are intended for pumping working fluid into hydraulic drive systems for controlling mounted, semi-mounted and trailed tools in agricultural, road, automotive and other machines.

USING THE PUMP

• Used as a working fluid:
  • M8 and M10 engine oils (GOST 17479.1-85);
  • MG30 hydraulic oils (TU 38.10150-79), MGE 46V (TU 38.001347-83);
  • hydraulic oil A (TU38.1011282-89)
• The temperature of the working liquid should be in the range of +15-80°C
• At low temperatures, heat the oil and allow the pump to run for 5-10 minutes without load.
• Every day before starting work, inspect the external components of the pump and hydraulic system. If necessary, tighten the pump mounting and eliminate oil leaks.

Gear pumps are manufactured in accordance with the ISO9001:2007 standard and are intended for pumping working fluid into hydraulic drive systems for controlling mounted, semi-mounted and trailed tools in agricultural, road, automotive and other machines.

USING THE PUMP

• Used as a working fluid:
  • M8 and M10 engine oils (GOST 17479.1-85);
  • MG30 hydraulic oils (TU 38.10150-79), MGE 46V (TU 38.001347-83);
  • hydraulic oil A (TU38.1011282-89)
• The temperature of the working liquid should be in the range of +15-80°C
• At low temperatures, heat the oil and allow the pump to run for 5-10 minutes without load.
• Every day before starting work, inspect the external components of the pump and hydraulic system. If necessary, tighten the pump mounting and eliminate oil leaks.

Gear pumps are manufactured in accordance with the ISO9001:2007 standard and are intended for pumping working fluid into hydraulic drive systems for controlling mounted, semi-mounted and trailed tools in agricultural, road, automotive and other machines.

USING THE PUMP

• Used as a working fluid:
  • M8 and M10 engine oils (GOST 17479.1-85);
  • MG30 hydraulic oils (TU 38.10150-79), MGE 46V (TU 38.001347-83);
  • hydraulic oil A (TU38.1011282-89)
• The temperature of the working liquid should be in the range of +15-80°C
• At low temperatures, heat the oil and allow the pump to run for 5-10 minutes without load.
• Every day before starting work, inspect the external components of the pump and hydraulic system. If necessary, tighten the pump mounting and eliminate oil leaks.

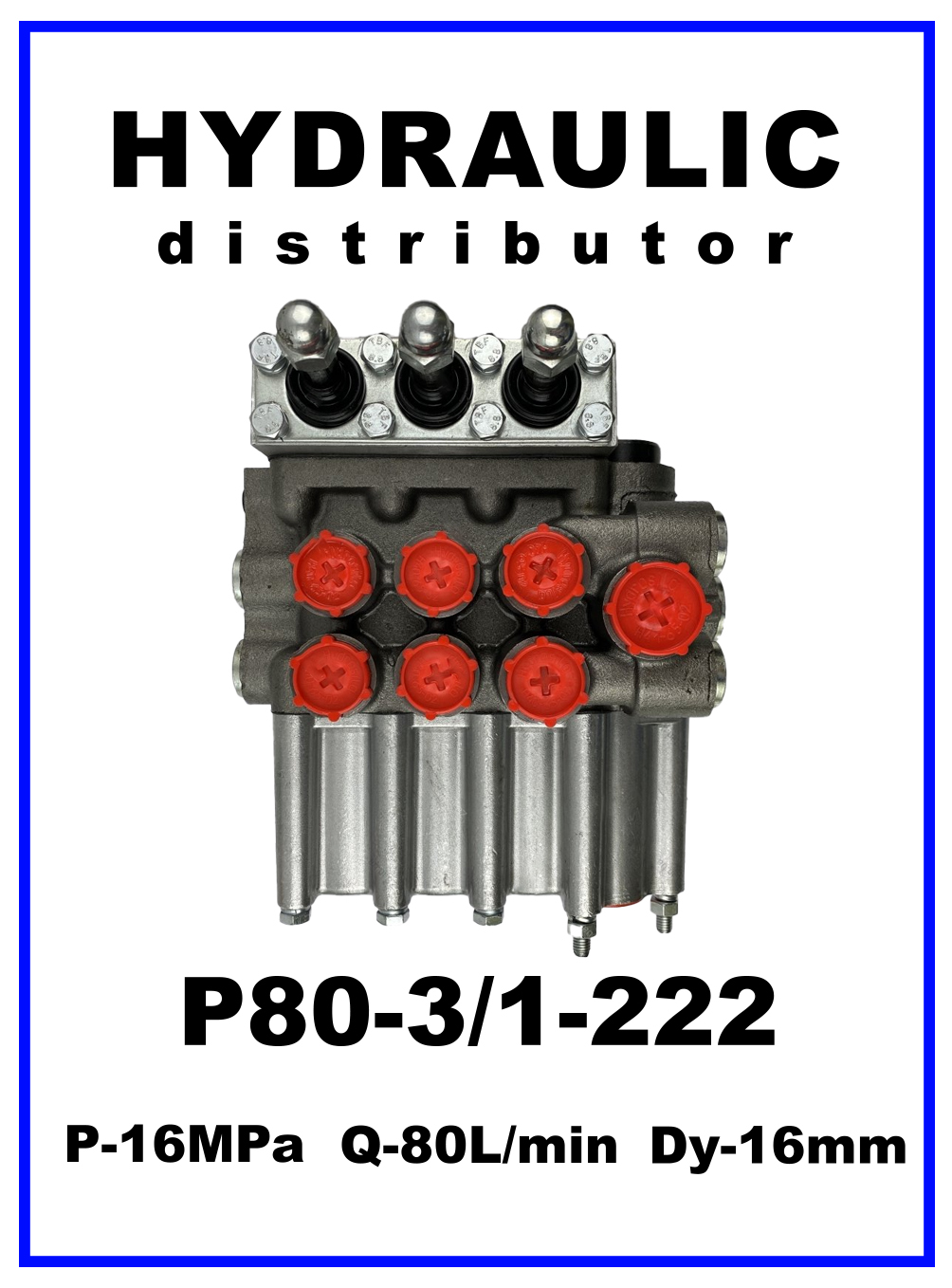

The hydraulic distributor is designed for installation of the general-purpose hydraulic system of tractors, agricultural and road machines with pumps with a capacity of up to 80 l/min, where it performs the following functions: distribution of the flow of the working fluid pumped by the hydraulic pump between consumers; prevention of overloading of the hydraulic system in the "Lift" and "Forced lowering" spool positions; unloading of the hydraulic system in the neutral position of the spool.

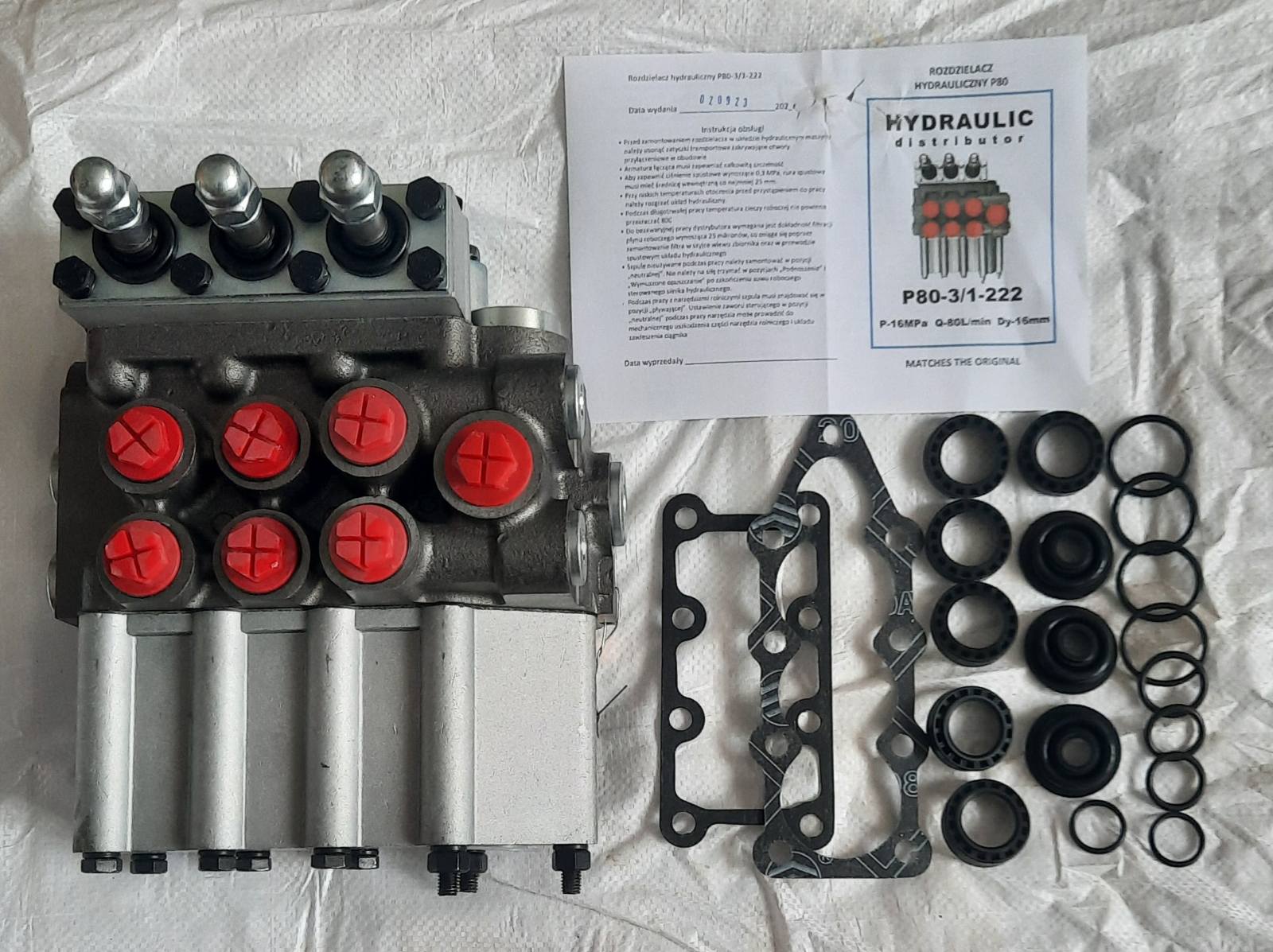

Instructions for the operation of the distributor P80-3/1-222

When installing the distributor, full tightness of the hydraulic system must be ensured. To ensure the pressure of the drain (the pressure during the free flow of liquid is 0.3 MPa with the internal cross-section of the nozzle should be at least 25 mm).

In the cold season, it is recommended to warm up the hydraulic system before starting work. With a high load on the hydraulic system, it should be ensured that the temperature of the working fluid in the system does not exceed 80°C.

It is necessary to carefully monitor oil filtration, for this, filters are installed in the filler neck of the tank and the drain line of the hydraulic system.

If the filters become dirty, the valves and the automatic return of the spools are disrupted. When working with attachments, the spools must be in the "Floating" position.

Moving the spool to the "Neutral" position while the gun is running will cause the hydraulic cylinder to fail. Spools not involved in work should be in the "Neutral" position.

It cannot be forcibly held in the "Lift" and "Forced Lower" positions after the end of the output of the controlled hydraulic cylinder to avoid overheating of the hydraulic system.
